MULTI-DISK type screw

Dewatering Machine
- RT type
- ST type
- MULTI-DISK type screw
Thickener



SCREW

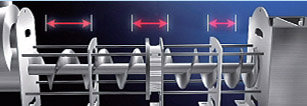

- Dehydrator is designed so that sludge entering through the inlet moves at a constant speed through a screw that has a decreasing pitch and dehydrated by a filtration part whit decreasing distance.

- This type of structure maintains a certain gap between the exterior of the screw and the interior of the ring which prevents wear and tear of the screw and the ring. Additionally due to left and right rotation of the moving ring, foreign substances in the gap can be permanently removed.

Rod with pendulum motion (Moving Shaft)

Unlike other type of screw dehtdrator, multi-disk type screw press drives with gearbox which installed both end side of screws. With this gearbox force, moving rings make pendulum motion by moving shaft which is attatched to gearbox and fixed ring is fixed by support beam. This moving rings and fixed rings are layered with washers between middle of rings.
