Product name : Thickener and multiplex plate dewatering machine(ST-TYPE)

Sludge treatment equipment excellent for mild concentrations Compact thickener and dewatoring machine all in ono High performance, high efficiency (for mild concentrations of 4,000 - 10,000 mg/1)

Type	Dimention(mm)			Electricity(KW)		Weight(kg)		Capacity (kg , DS/hr)
Type	Lenght	Height	Width	Mixing Tank	Screw	Idle	Operation	Capacity (kg , DS/hr)
ST101	2181	1524	610	0.4	0.1	400	700	6~8
ST102	2181	1524	900	0.4	0.2	600	1,000	12~16
ST201	2834	1540	650	0.4	0.4	900	2,000	15~20
ST202	2834	1540	1050	0.4	0.8	1,200	2,600	30~40
ST203	2834	1845	1400	0.75	1.2	1,500	2,800	45~60
ST204	2834	1845	1720	0.75	1.6	2.000	3,200	60~80
ST401	4077	2140	1288	0.75	0.8	1,200	2,600	40~50
ST402	4077	2140	1528	0.75	1.6	1,700	3,800	80~100
ST403	4277	2186	2060	1.5	2.4	2,200	4,000	120~150
ST404	4277	2186	2300	1.5	3.2	2,700	4,800	160~200
ST601	5526	3250	1400	1.5	1.1	1,800	4,700	90~120
ST602	5526	3250	2320	1.5	2.2	2,500	5,700	180~240
ST603	5526	3250	3040	1.5	3.3	3,200	6,700	270~360

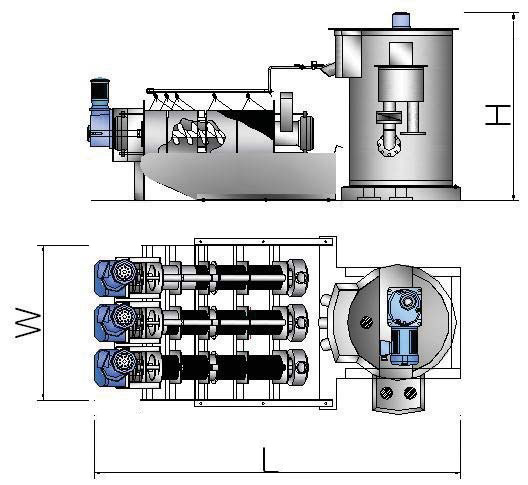

Standard external design
